Fisher Controls Valve Positioner Controller DVC6200PD Digital Valve Positioner Controller
| 起源の場所 | アメリカ合衆国 |
|---|---|
| ブランド名 | Fisher |
| 証明 | CE |
| モデル番号 | DVC6200PD |
| 最小注文数量 | 1 |
| 価格 | US$2800/PC |
| パッケージの詳細 | カートン |
| 受渡し時間 | 1週間 |
| 支払条件 | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給の能力 | 500個 |
商品の詳細
製品の説明
Product Description:

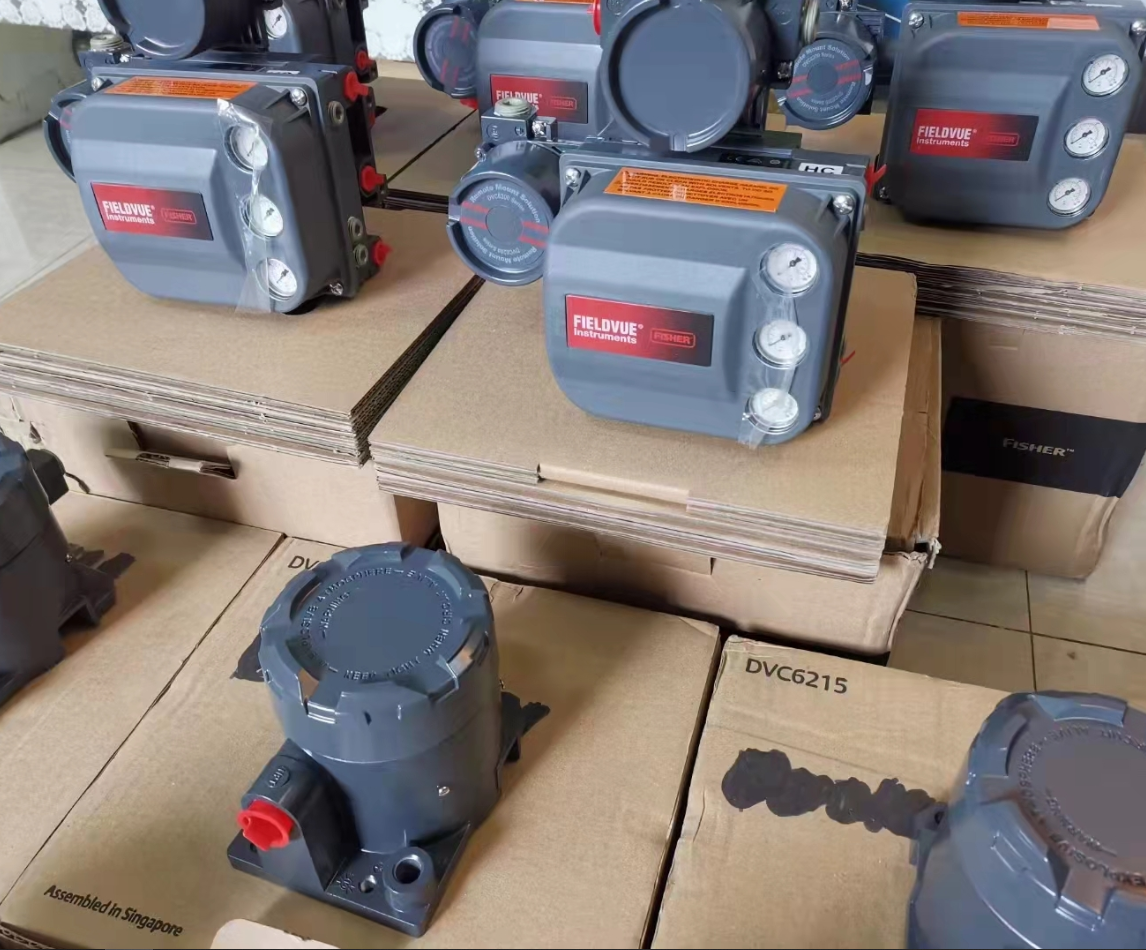

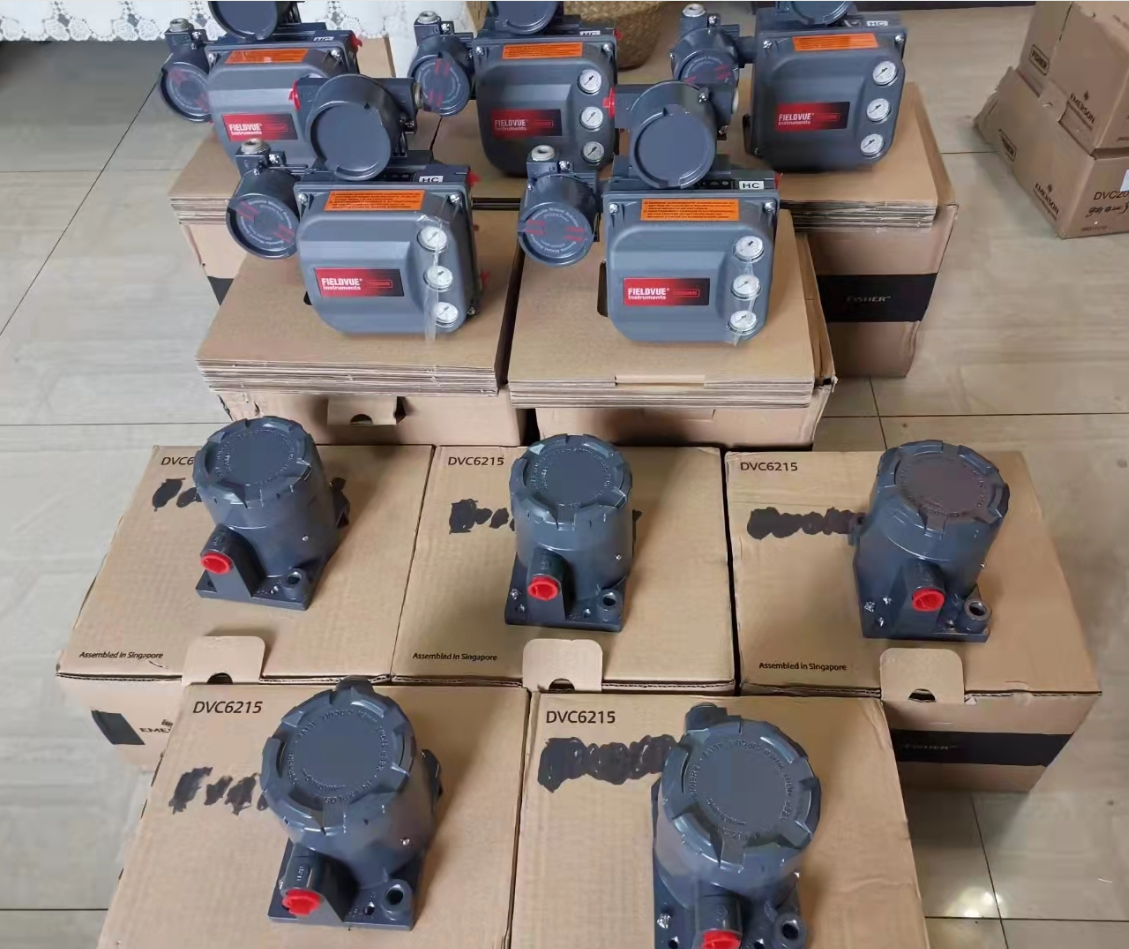

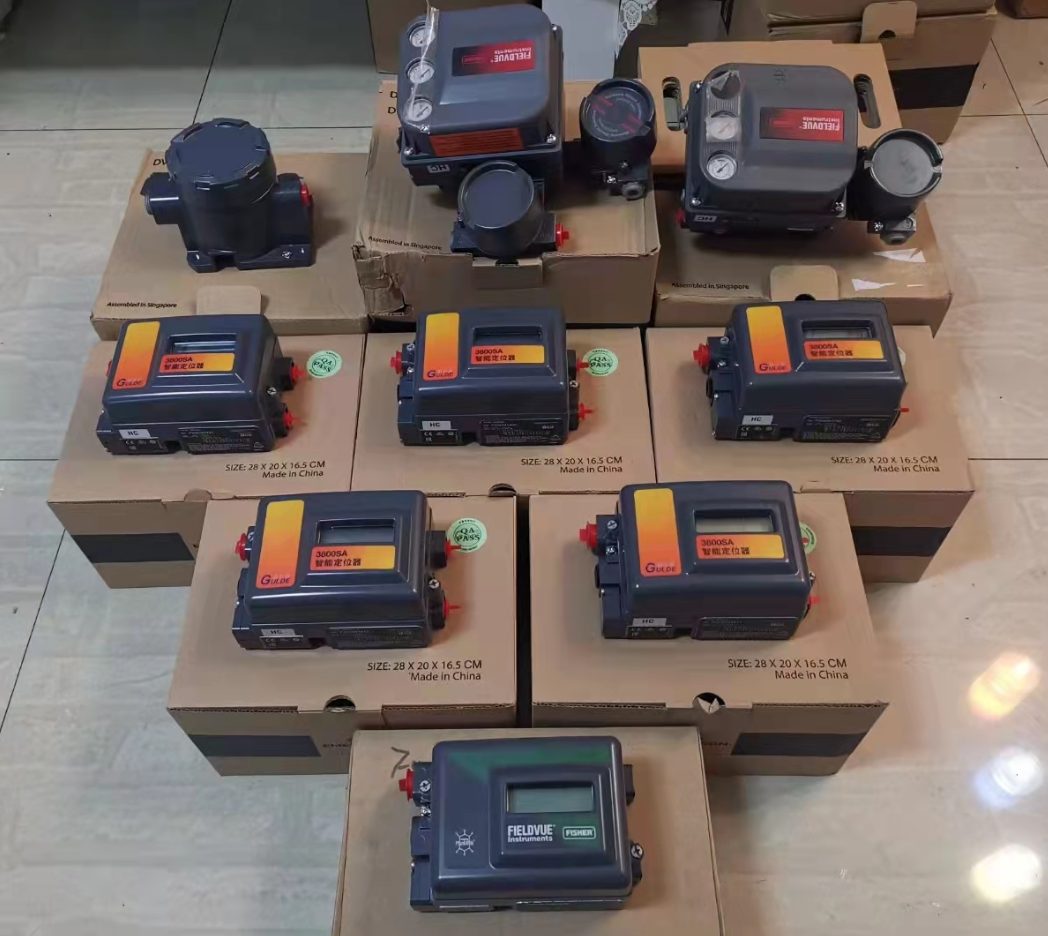

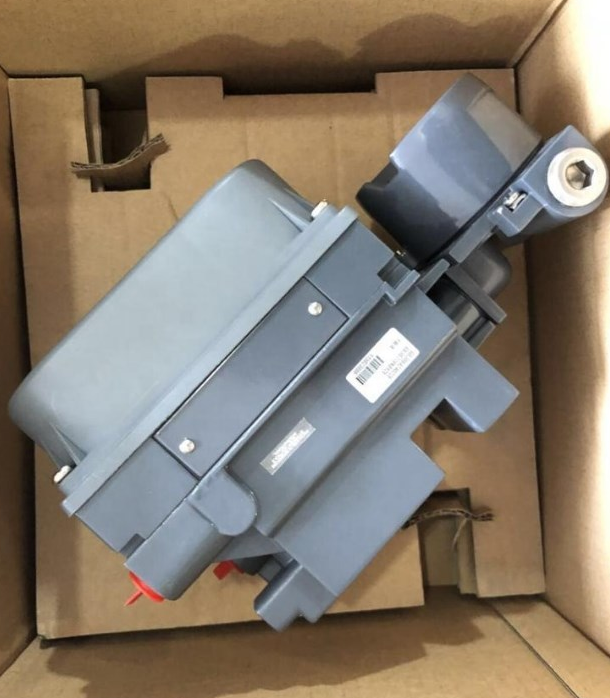

Fisher Controls Valve Positioner Controller DVC6200PD
The Fisher DVC6200PD valve positioner controller delivers high-precision control for double-acting actuators in critical process environments. Built with a stainless steel enclosure and certified for hazardous areas, it integrates seamlessly into FOUNDATION Fieldbus-based control systems.
The high performance, linkage-less feedback system eliminates physical contact, which eliminates wearing on parts.
The fully encapsulated electronics resist the effects of vibration, temperature, and corrosive atmospheres.
Provides quick responsiveness to large step changes and precise control for small setpoint changes.
The modular design allows critical working components to be replaced without removing field wiring or pneumatic tubing.
When installed in an integrated control system, significant hardware and installation cost savings can be achieved.
The self-diagnostic capability provides valve performance and health evaluation.
Digital communication provides easy access to the condition of the valve.
Features:
- Product Name: Digital Valve Positioner Controller
- Model Numbers: DVC6200PD
- Compatible with Valve Positioner
- Mounting Bracket: Standard Angular Stroke Mounting Bracket
- Shipping Weight: 6 Kg
- Minimum Control Current: 4-20mA Feedback
- Single Package Size: 40X40X40 Cm
- Enclosure Material: Aluminum Diecasting or 316SS
Technical Parameters:
| Product Name | Digital Valve Controllers |
| Product Type | Valve Positioner DVC6200 |
| Enclosure Material | Aluminum Diecasting Or 316SS |
| Single Package Size | 40X40X40 Cm |
| Shipping Weight | 6 Kg |
| Protection Class | IP 67 / NEMA 4X |
| Mounting Bracket | Standard Angular Stroke Mounting Bracket |
| Operating Temperature | -25°C To +60°C |
| Minimum Control Current | 4-20mA Feedback |
