Eaton MTL5531 Safety Transmitter with Zone 0 Hazardous Rating SIL2 Safety Integrity and Galvanic Isolation 250V rms
| 起源の場所 | イギリス |
|---|---|
| ブランド名 | EATON |
| モデル番号 | MTL5531 |
| 最小注文数量 | 2 |
| 価格 | USD＄183 |
| パッケージの詳細 | オリジナルの梱包 |
| 受渡し時間 | 在庫あり |
| 支払条件 | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給の能力 | 10個 |
商品の詳細
| ハイライト | EATON MTL5531 safety transmitter,original PLC safety transmitter,British EATON MTL5531 transmitter |
||
|---|---|---|---|
製品の説明
General specifications
| Product Name |

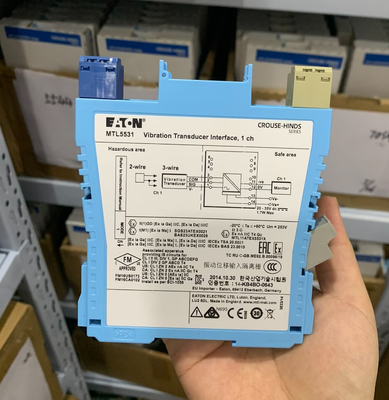

Eaton Crouse-Hinds series MTL5500 vibration transducer interface
|
| Catalog Number |
MTL5531
|
| EAN |
5056891309789
|
| Product Length/Depth |
109.8 mm
|
| Product Height |
118.8 mm
|
| Product Width |
15.8 mm
|
| Product Weight |
150 g
|
Certifications and compliances
| Area classification |
Hazardous/Classified Locations
|
| Standards type |
IEC
IECEx/ATEX |
| IECEx/ATEX hazardous rating |
Zone 0
|
| EMC |
EN61326
|
| Safety Integrity Level According to IEC61508 |
SIL2
|
Product specifications
| Signal Type |
Pulse and vibration
|
| Number of Channels |
1
|
| Mounting Method |
T-section 35mm DIN rail
|
| Power Dissipation |
1.33W
|
| Signal Range |
Minimum: -20V, maximum: -0.5V
|
| Transfer Accuracy |
<±50mV (DC)
|
| Switching Frequency |
-3 dB at 47 kHz (typical)
|
| Galvanic Isolation |
250V rms between safe-area circuits and power supply
|
| Type |
2- or 3-wir
|
