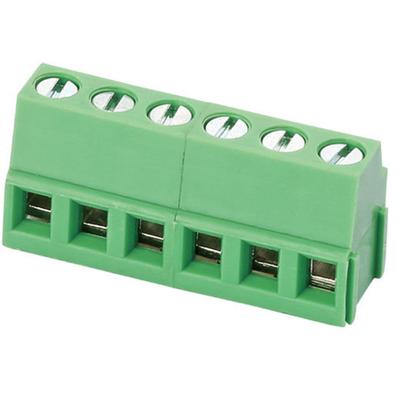

Double Deck XYEK500,XYEK508 Good Quality Pcb Screw Terminal Block 5.0mm 5.08 Pitch Replace Phoenix DG128-5.0 Manufacturer

  • Double Deck XYEK500,XYEK508 Good Quality Pcb Screw Terminal Block 5.0mm 5.08 Pitch Replace Phoenix DG128-5.0 Manufacturer
  • Double Deck XYEK500,XYEK508 Good Quality Pcb Screw Terminal Block 5.0mm 5.08 Pitch Replace Phoenix DG128-5.0 Manufacturer
  • Double Deck XYEK500,XYEK508 Good Quality Pcb Screw Terminal Block 5.0mm 5.08 Pitch Replace Phoenix DG128-5.0 Manufacturer
  • Double Deck XYEK500,XYEK508 Good Quality Pcb Screw Terminal Block 5.0mm 5.08 Pitch Replace Phoenix DG128-5.0 Manufacturer
起源の場所 中国
ブランド名 Xinlaiya
証明 -
モデル番号 XYEK500-5.0 XYEK508-5.08
最小注文数量 1
価格 USD1/PC
パッケージの詳細 オリジナル
受渡し時間 在庫あり
支払条件 L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力 1000
商品の詳細
保証 1年 極 2P、3P～24P
標準 UL、IEC 耐電圧 AC2000V/min
メッセージ
製品の説明

Double Deck XYEK500,XYEK508 Good Quality Pcb Screw Terminal Block 5.0mm 5.08 Pitch Replace Phoenix DG128-5.0 Manufacturer 0Double Deck XYEK500,XYEK508 Good Quality Pcb Screw Terminal Block 5.0mm 5.08 Pitch Replace Phoenix DG128-5.0 Manufacturer 1Double Deck XYEK500,XYEK508 Good Quality Pcb Screw Terminal Block 5.0mm 5.08 Pitch Replace Phoenix DG128-5.0 Manufacturer 2Double Deck XYEK500,XYEK508 Good Quality Pcb Screw Terminal Block 5.0mm 5.08 Pitch Replace Phoenix DG128-5.0 Manufacturer 3



Conductor Size
12 - 24AWG
Connection Method
Screw Connection
Type
PCB
Number of Pole
2P-24P
Contact Material
Brass
Place of Origin
Zhejiang, China
Model Number
XYEK500-5.0 XYEK508-5.08
Brand Name
Xinlaiya
Poles
2P, 3P-24P

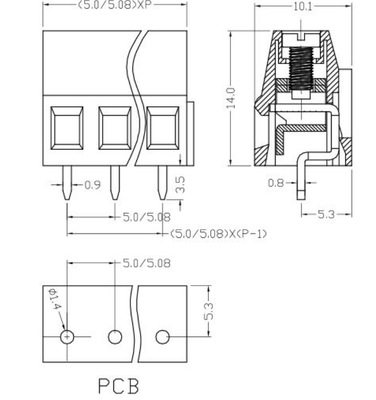

Pitch
5.0mm 5.08mm
Standard
UL , IEC
Voltage Rating
300V/250V
Current Rating
15A-18A
Wire range
24-12AWG/2.5m㎡
Withstanding Voltage
AC2000V/Min
Ambient temperature
-40 centigrade~+105 centigrade
Pin header
Brass, Tin Plated
Housing
PA66.UL94V-0
