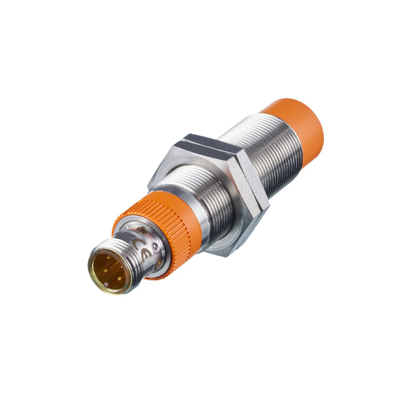

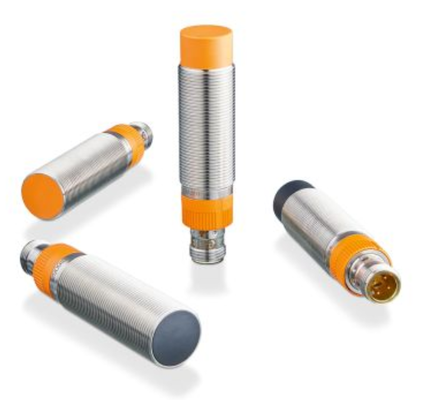

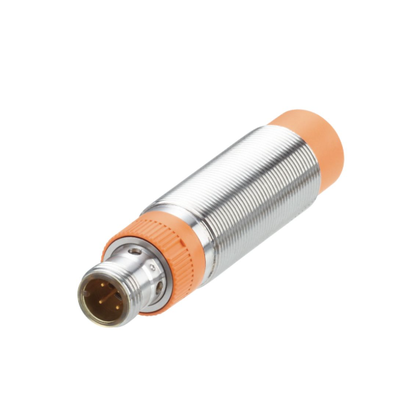

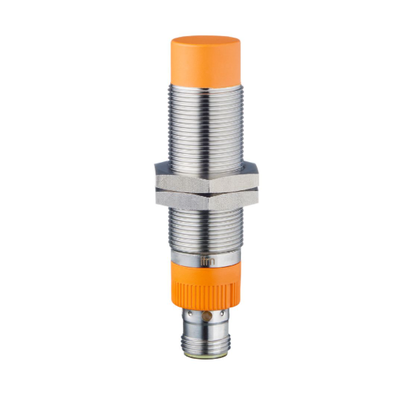

German Compact Evaluation Unit for Speed Monitoring with IO-Link and Configurable Outputs
| 起源の場所 | ドイツ |
|---|---|
| ブランド名 | IFM |
| モデル番号 | DI6004 |
| 最小注文数量 | 2 |
| 価格 | USD＄145 |
| パッケージの詳細 | オリジナルの梱包 |
| 受渡し時間 | 在庫あり |
| 支払条件 | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給の能力 | 10個 |
商品の詳細
| ハイライト | Compact Evaluation Unit,IO-Link Speed Monitor,Configurable Programmable Logic Controller |
||
|---|---|---|---|
製品の説明
Product characteristics
| Electrical design | PNP/NPN; (configurable) |
| Output function | normally open / closed; (configurable) |
| Sensing range[mm] | 12 |
| Communication interface | IO-Link |
| Housing | Threaded type |
| Dimensions[mm] |
M18 x 1 / L = 75 |
Electrical data
| Operating voltage[V] | 10...30 DC |
| Current consumption[mA] | < 15 |
| Protection class | II |
| Reverse polarity protection | yes |
| Pulse output / Switching output (OUT2) | |
|---|---|
| Output signal | pulse signal; switching signal; (configurable) |
| Permanent current rating of switching output DC[mA] | 100 |
| Switching frequency DC[Hz] | < 500 |
| Pulse output | external evaluation of the damping pulses |
