Original New Fluke 8558A 8.5 Digit Multimeter
| 起源の場所 | アメリカ合衆国 |
|---|---|
| ブランド名 | Fluke |
| 証明 | CCC,CE |
| モデル番号 | 8558A |
| 最小注文数量 | 1 |
| 価格 | USD$13320/PC |
| パッケージの詳細 | オリジナル 新品 |
| 受渡し時間 | 3日間 |
| 支払条件 | L/C、D/A、D/P、T/T、ウェスタンユニオン、マネーグラム |
| 供給の能力 | 10 |
商品の詳細
| 直流電圧 | 100mV 〜 1000V | 交流電圧 | 10mV ¥ 1000V,1Hz ¥ 10MHz |
|---|---|---|---|
| 抵抗、LoI、HV | 1Ω～10GΩ | 直流電流 | 10 uA 2 A |
| AC電流 | 10uA 〜 2A,1Hzから100kHz | 頻度 | 1Hz～10MHz、1Hz～100kHz、10Hz～100MHz |
| メモリ | 15，000,000 |
製品の説明

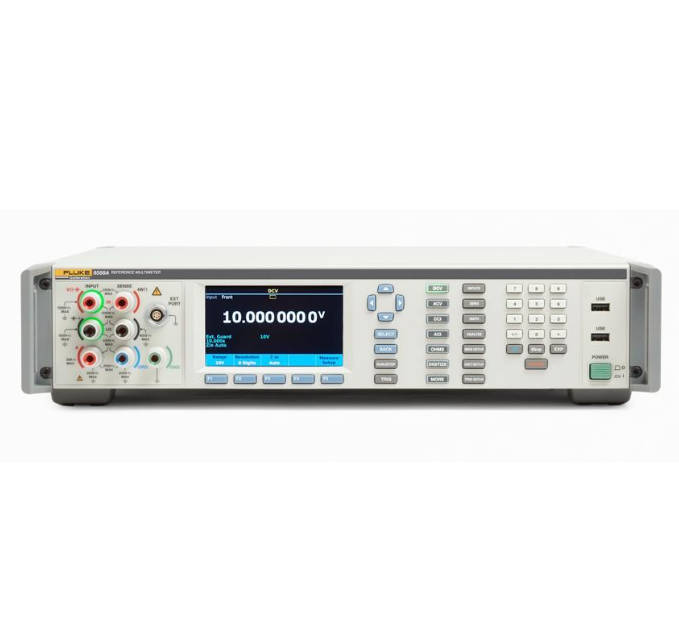

Fluke 8558A 8.5 Digit Multimeter
Key Features
- 5 mega-samples-per-second high resolution digitizing, providing exceptional speed and accuracy.
- Intuitive user interface on a color display for easy data viewing in various formats including trend plots, waveforms, FFT, histogram and statistics.
- Direct digitizing capability with a minimum of 100,000 readings per second at 4.5 digits across GPIB, USBTMC, or Ethernet.
- Onboard data memory that can hold up to 15 million readings.
- Programmable front/rear electronic switch for immediate ratio results through a single remote command, and several USB ports for quick and easy data download to a flash drive.
Accurate data, delivered amazingly fast
Shorter test time on the 8588A/8558A high-speed digital platform enables you to increase throughput, improve yield and realize a greater return on your investment. The 8588A/8558A digitizes to memory at 200 nanoseconds per reading and delivers 4.5 digit data to a PC via USB, Ethernet and GPIB at 100,000 readings per second. Fast, high resolution data capture gives you the quantity and quality of information you need to make timely, correct decisions affecting system throughput and efficiency.
- 0 ns to 100 s aperture setting allows industry’s widest flexibility to control data capture window
- Reading speed: 1 reading /s @ 8.5 digits to 100,000 reading /s @ 4.5 digits
- Data transfer from memory to PC: up to 500,000 readings /s in binary format through USB, up to 200,000 through Ethernet and GPIB
