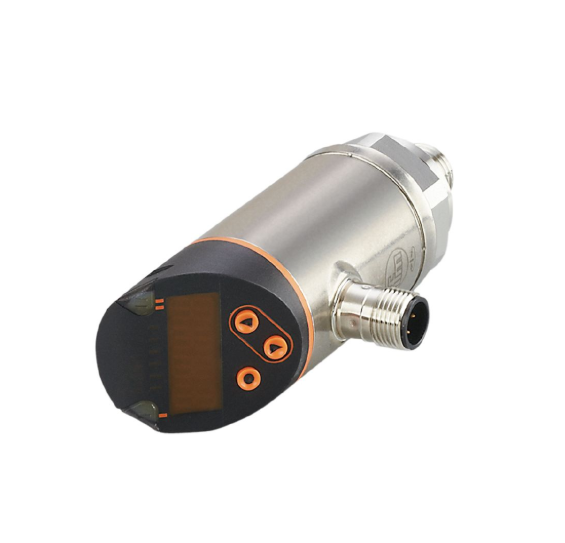

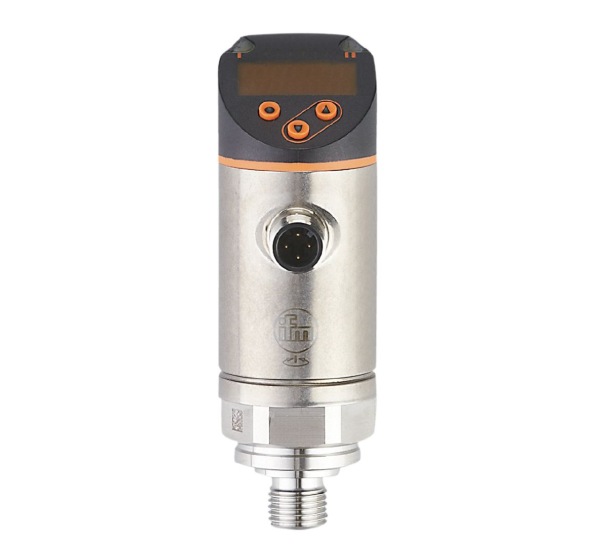

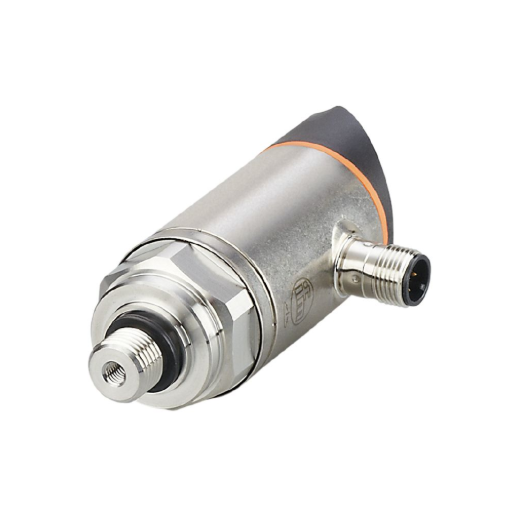

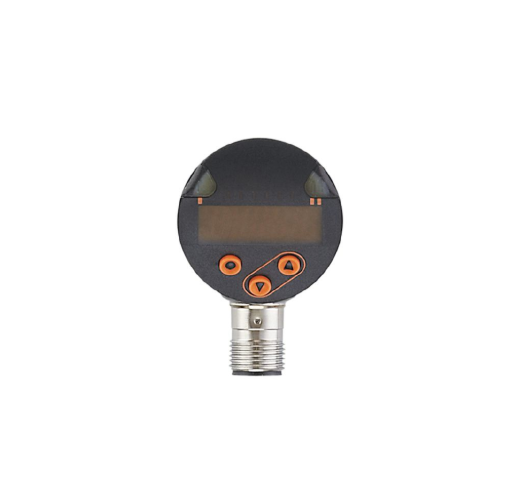

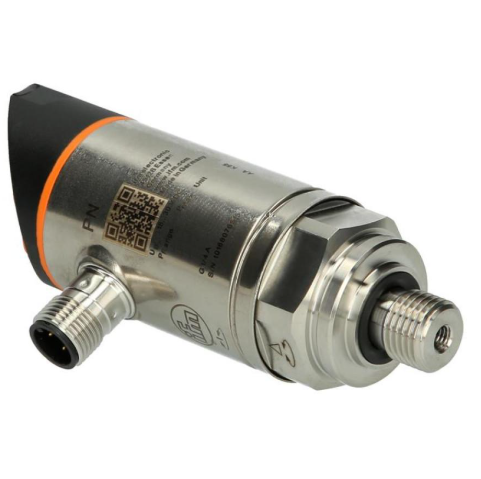

New, original, German Pressure sensor with display IFM PN7593 in stock
| 起源の場所 | ドイツ |
|---|---|
| ブランド名 | IFM |
| モデル番号 | PN7593 |
| 最小注文数量 | 2 |
| 価格 | USD＄166 |
| パッケージの詳細 | オリジナルの梱包 |
| 受渡し時間 | 在庫あり |
| 支払条件 | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給の能力 | 10個 |
商品の詳細
製品の説明
Electrical data
| Operating voltage[V] | 18...30 DC; (to SELV/PELV) |
| Current consumption[mA] | < 35 |
| Min. insulation resistance[MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] | < 0.3 |
| Integrated watchdog |
yes
|
Outputs
| Total number of outputs | 2 |
| Output signal | switching signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC[V] | 2.5 |
| Permanent current rating of switching output DC[mA] | 150; (200 (...60 °C) 250 (...40 °C)) |
| Switching frequency DC[Hz] | < 170 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
