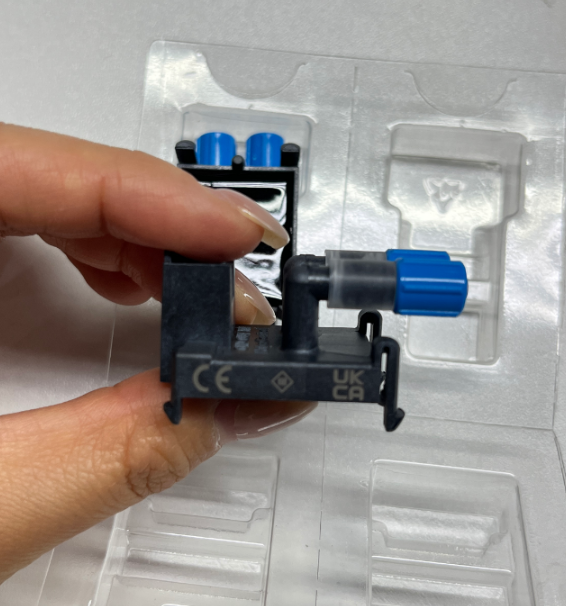

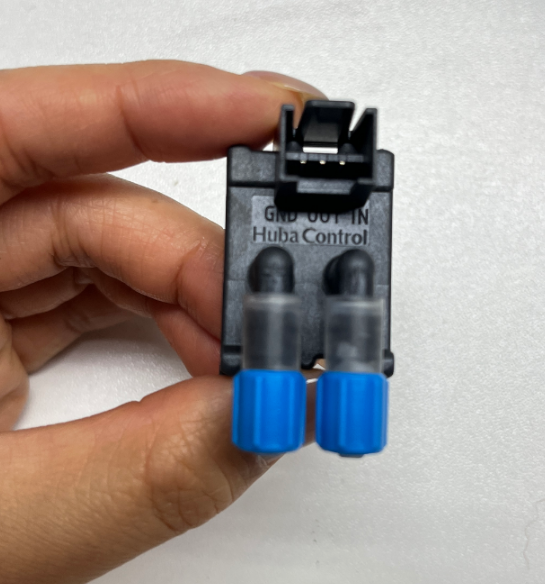

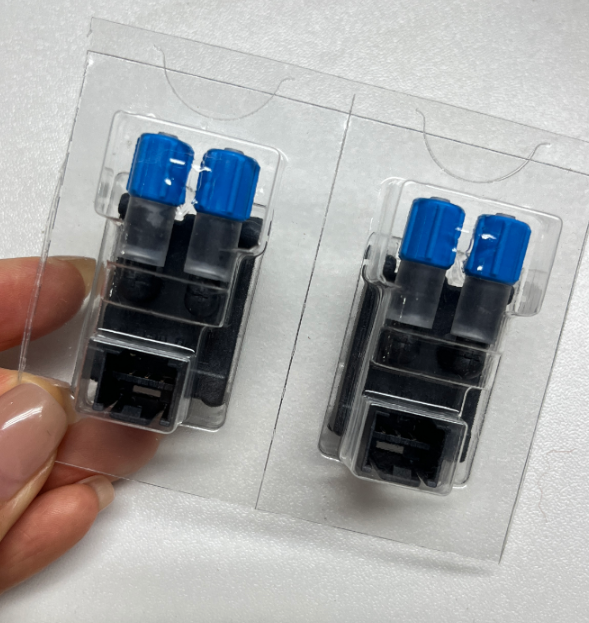

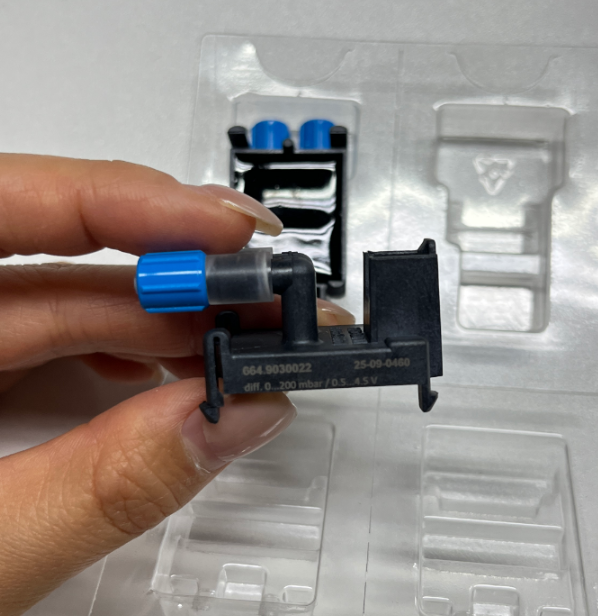

HUBA Differential pressure switch 664 series 664.903002
| 起源の場所 | アメリカ合衆国 |
|---|---|
| ブランド名 | HUBA |
| 証明 | CE |
| モデル番号 | 664.903002 |
| 最小注文数量 | 1 |
| 価格 | US$125/PC |
| パッケージの詳細 | カートン |
| 受渡し時間 | 1週間 |
| 支払条件 | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給の能力 | 500個 |
商品の詳細
| ハイライト | HUBA differential pressure switch 664 series,Differential pressure gauge with warranty,664.903002 pressure switch industrial |
||
|---|---|---|---|
製品の説明
Product feature
Pressure measuring range
-5 ... 5 mbar (Relative and difference); 0 ... 2000 mbar (Relative and difference); 0 ... 2000 mbar (Absolute); 800 ... 1200 mbar (Barometric sensor)
Response time
<2 ms
Pressure connection
Hose nozzle (Ø 4.8 mm); Plastic screw connection (Ø 3.9 mm / M6x0.75)
Sensor weight
1.5 g (additional)
Field of application
Media
Air; neutral gas
Medium temperature
-40 ... 85 °C
Permissible overload on one side
10 x FS; 3 x FS
Bursting pressure
15 x FS; 5 x FS
Ambient condition
Ambient temperature
-40 ... 85 °C
Storage temperature
-40 ... 100 °C
Material
Housing
LCP
Substrate
Ceramic Al2O3 (96 %)
Measuring element
Silicon
Adhesives
Silicone, epoxy
plastic screw fittings
PC
