Fluke 805ES External Vibration Sensor Cable
| 起源の場所 | アメリカ合衆国 |
|---|---|
| ブランド名 | Fluke |
| 証明 | CCC.CE |
| モデル番号 | 805ES |
| 最小注文数量 | 1 |
| 価格 | USD$1120/PC |
| パッケージの詳細 | オリジナル 新品 |
| 受渡し時間 | 3日間 |
| 支払条件 | L/C、T/T、ウェスタンユニオン |
| 供給の能力 | 10個 |
商品の詳細
| 測定範囲 | 7 g パック (68.7 m/s² パック) | 周波数範囲 | 0～6000cpm |
|---|---|---|---|
| リレー | 通常開/閉 | 温度範囲 | -13 ～ 140°F |
| エンクロージャー評価 | IP66 | ハウジング材質 | アルミニウム合金 |
| 重さ | 2kg |
製品の説明

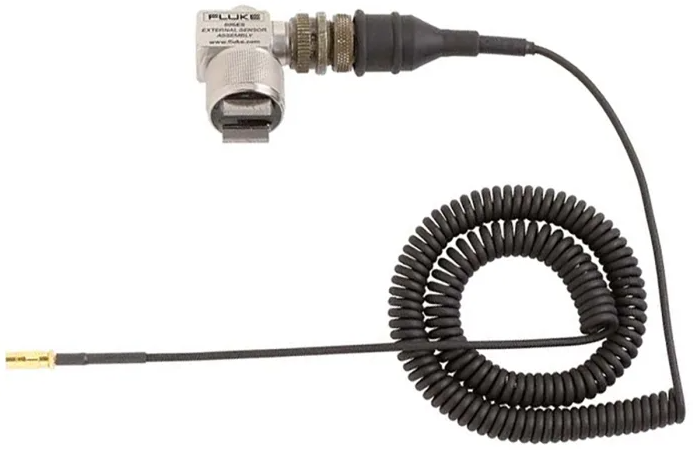

Fluke 805ES External Vibration Sensor Cable
Key features
- Low-profile 90-degree sensor body allows the sensor to get into tight spots
- Rugged, coiled cable minimizes dangling, while stretching to more than 7ft when needed
- Powerful "U" shaped magnet mount creates a firm connection to flat, or curved measurement surfaces
- Rugged, sealed cable connector with strain relief tail reduces cable wear
- Removable sensor magnet to allow for direct attachment to a sensor mounting pad, or threaded hole on a piece of equipment
- Connects directly to 805 Vibration Meter SMB connector located in the heel of the mete

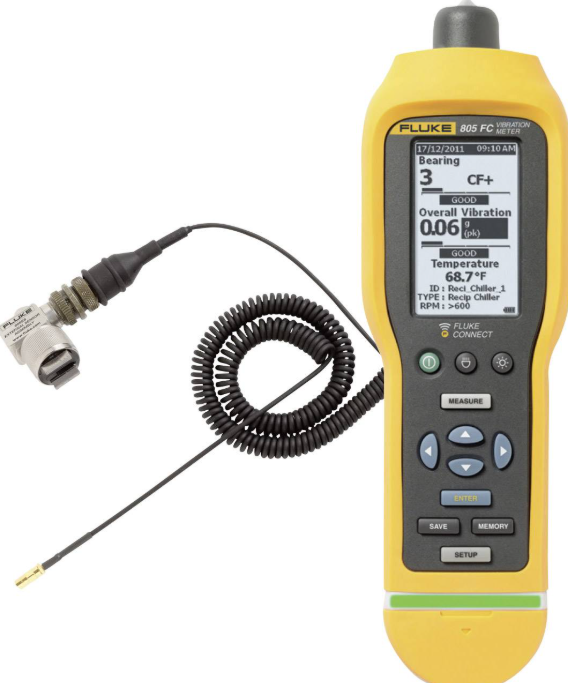

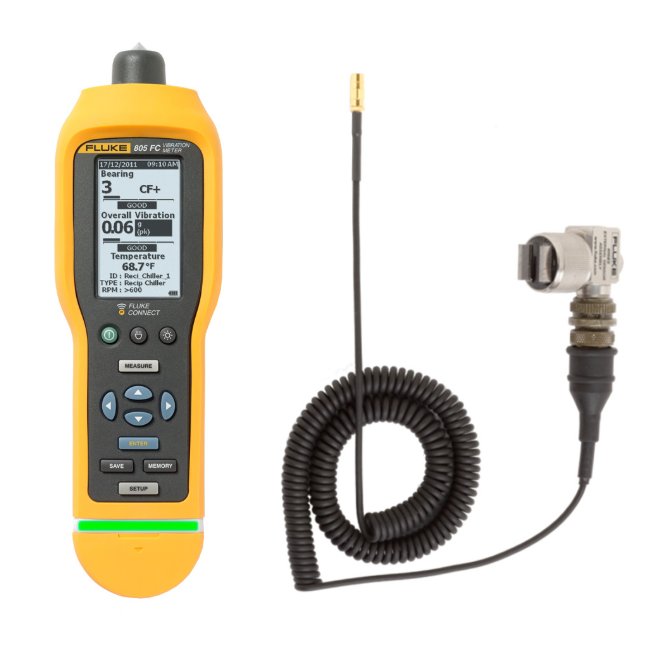

External Vibration Sensor for the 805 Vibration Meter
The Fluke 805ES is an external vibration sensor that is ideal in situations for which it is either difficult or impractical to use the onboard vibration sensor tip of the 805 Vibration Meter. The 805ES allows you to take measurements in crowded or hard-to-reach locations, behind machine guards or enclosures, or in out-of-reach places where it is difficult to apply sufficient manual pressure to the 805 Vibration Meter.
