AVENTICS STOCK Pneumatic Valve 5/2-directional Valve with Double Solenoid 850 l/min and 24 V DC
| 起源の場所 | ドイツ |
|---|---|
| ブランド名 | AVENTICS |
| 証明 | CE |
| モデル番号 | 0820055501 |
| 最小注文数量 | 1 |
| 価格 | US$70/PC |
| パッケージの詳細 | カートン |
| 受渡し時間 | 1週間 |
| 支払条件 | L/C、D/A、D/P、T/T、ウェスタンユニオン |
| 供給の能力 | 500個 |
商品の詳細
| 起源の場所 | ドイツ | 動作温度 | 最大50℃ |
|---|---|---|---|
| 測定範囲 | 他の | 重さ | 0.082 kg |
| ハイライト | Double Solenoid Pneumatic Valve,850 l/min 5/2-directional Valve,24 V DC Valve Systems |
||
製品の説明

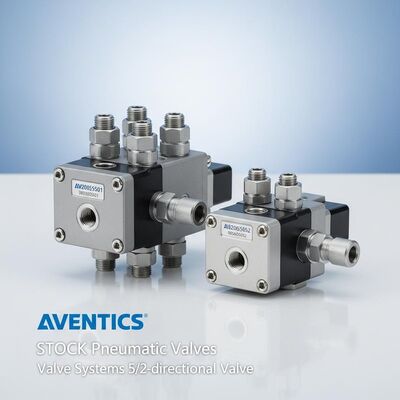

AVENTICS STOCK Pneumatic Valves - 5/2-Directional Valve
High-performance 5/2-directional pneumatic valve systems from AVENTICS, designed for industrial applications with reliable double solenoid actuation and robust construction.
Product Specifications
| Model Number | 0820055501, 0820062052 |
| Brand Name | AVENTICS |
| Place of Origin | Germany |
| Application | Industrial |
| Material | ABS, Copper |
| Operating Temperature | Max 50 °C |
| Weight | 0.082 kg |
Technical Performance
| Switching Principle | 5/2, Double Solenoid |
| Actuating Control | Double Solenoid |
| Nominal Flow Qn | 850 l/min |
| Working Pressure | -0.9 bar to 10 bar |
| Operational Voltage | 24 V DC |
| Voltage Tolerance DC | -15% / +20% |
| Power Consumption DC | 0.35 W |
| Sealing Principle | 16 mm, Soft Seal |
| Duty Cycle | 100% |
Key Features
- Double solenoid actuation for reliable switching
- High flow rate of 850 l/min for efficient operation
- Wide working pressure range from vacuum to 10 bar
- 100% duty cycle for continuous operation
- Soft seal design for optimal sealing performance
- German engineering and manufacturing quality
