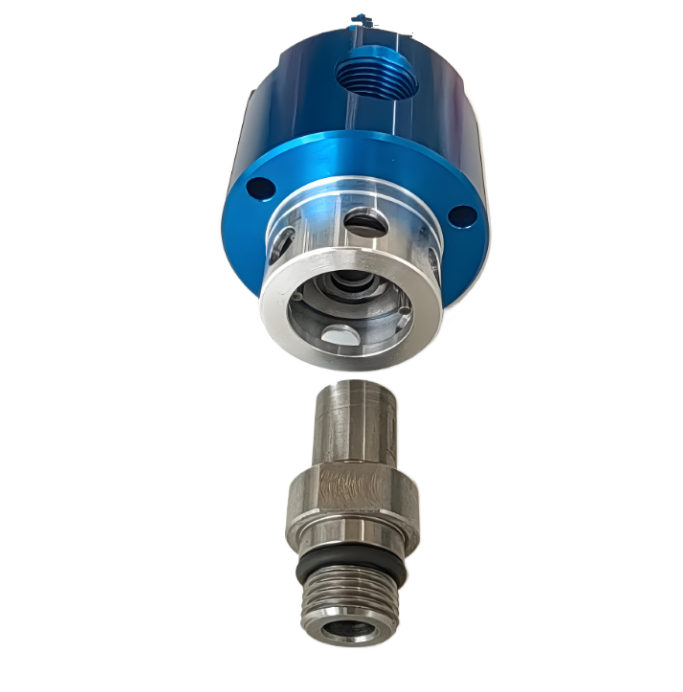

DEUBLI Rotary Joint 17 Series for Air Hydraulic Vacuum Systems
| Place of Origin | USA |
|---|---|
| ブランド名 | DEUBLI |
| 証明 | - |
| Model Number | 17-025-012 |
| Minimum Order Quantity | 1 |
| 価格 | USD240/PC |
| Packaging Details | Original |
| Delivery Time | 2weeks |
| Payment Terms | L/C, D/A, D/P, Western Union, T/T, MoneyGram |
| Supply Ability | 1000 |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Material | Carbon steel | Bore Diameter | 10mm |
|---|---|---|---|
| Customized support | OEM | Maximum Torque | 100Nm |
| ハイライト | DEUBLI 17 Series rotary joint,rotary joint for hydraulic systems,vacuum system rotary joint |
||
製品の説明
Air Max Flow (cfm)
40
Air Max Flow (l/min)
1132
Air Max Pressure (bar)
10
Air Max Pressure (psi)
150
Air Max Temperature (°C)
121
Air Max Temperature (°F)
250
Housing Connection (in)
1/4-18 NPT
Hydraulic Oil Max Pressure (bar)
207
Hydraulic Oil Max Pressure (psi)
3000
Hydraulic Oil Max Temperature (°C)
121
Hydraulic Oil Max Temperature (°F)
250
Media
Vacuum, Hydraulic Oil, Air
Rotor Connection (in)
5/8-18 UNF RH
Vacuum Max Pressure (bar)
-0.95
Vacuum Max Pressure (psi)
-13.75
Vacuum Max Temperature (°C)
121
Vacuum Max Temperature (°F)
250
