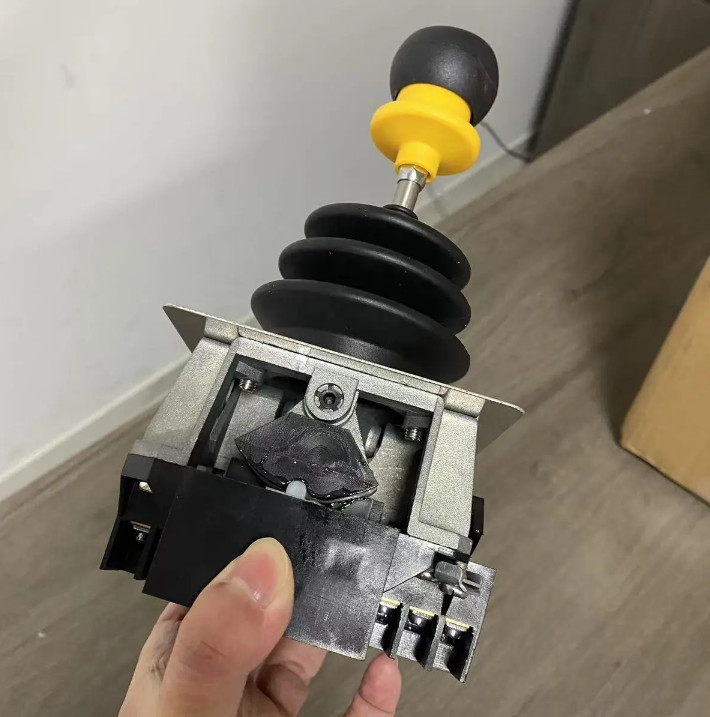

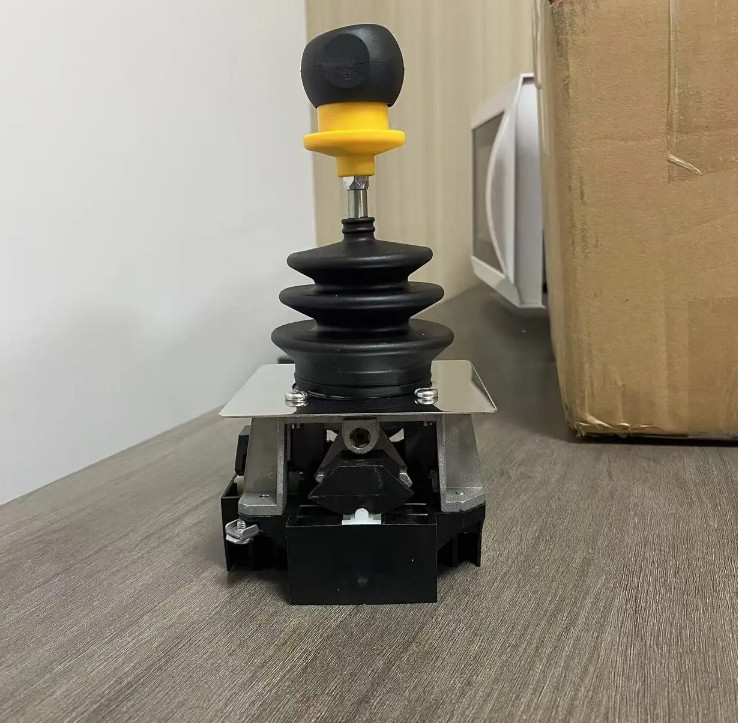

New Original Complete Joystick Controller XKBA32330
| Place of Origin | USA |
|---|---|
| ブランド名 | Schneider |
| 証明 | - |
| Model Number | XKBA32330 |
| Minimum Order Quantity | 1 |
| 価格 | USD350/PC |
| Packaging Details | Original |
| Delivery Time | 1week |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 |
試供品およびクーポンのための私に連絡しなさい。
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| Notch per direction | 1...3 notches at 12°-20°-28° for each direction | Mechanical durability | 1000000 cycles |
|---|---|---|---|
| Protective treatment | TC | customized support | OEM, ODM |
製品の説明
| Mechanical durability | 1000000 cycles |
|---|---|
| Vibration resistance | 6 gn (f= 1…70 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 20 gn (duration = 11 ms) conforming to IEC 60068-2-6 |

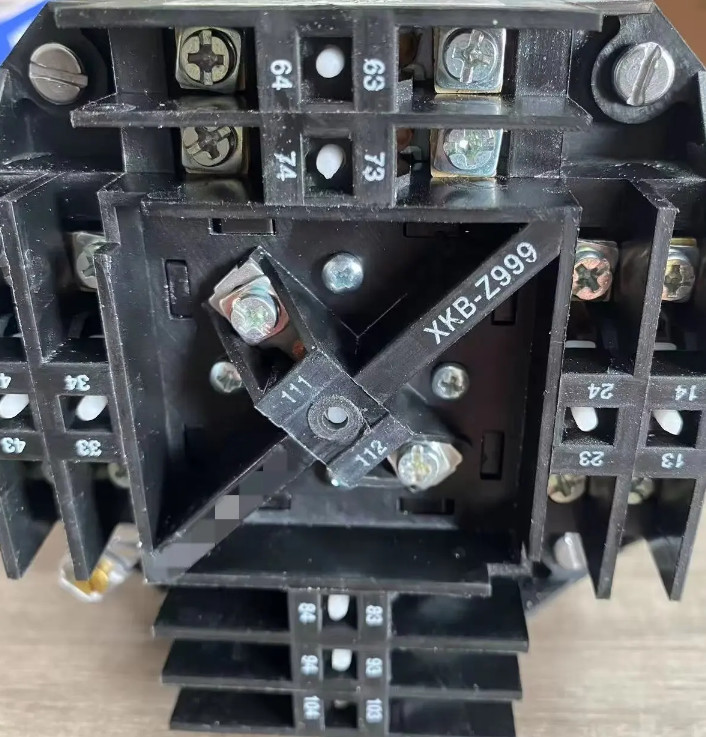

| Connections - terminals | Captive screw clamp terminals, <= 2 x 1.5 mm² with cable end Captive screw clamp terminals, <= 1 x 2.5 mm² without cable end Captive screw clamp terminals, >= 1 x 0.5 mm² |
| Short-circuit protection | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current | 10 A conforming to EN/IEC 60947-5-1 10 A conforming to CSA C22.2 No 14 10 A conforming to UL 508 |
| [Ui] rated insulation voltage | 500 V (pollution degree 3) conforming to IEC 60947-1 |
| Compatibility code | XKB |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.0 cm |
| Package 1 Width | 10.0 cm |
| Package 1 Length | 10.0 cm |
| Package 1 Weight | 800.0 g |
